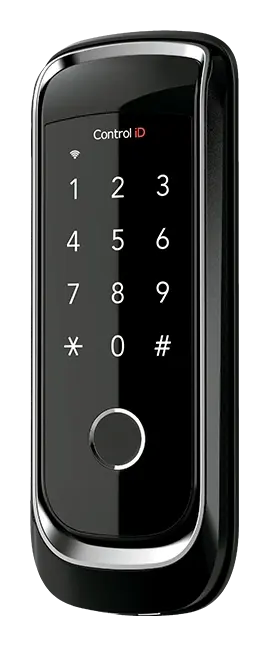

Control iD iDLock Bio Wi-Fi Smart Lock
Control iD iDLock Bio Wi-Fi — Biometric Smart Lock
Fingerprint, PIN and one-time codes at the door, managed from the cloud

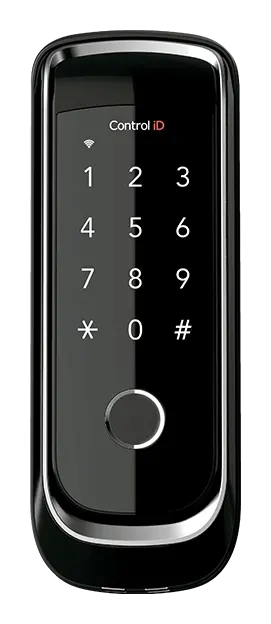

Control iD’s iDLock Bio Wi-Fi is a surface-mounted digital lock for offices, rooms and other doors that need their own access control. A 500 DPI capacitive fingerprint reader and a 12-key backlit touch keypad sit on the outside unit, and a Wi-Fi connection to Control iD’s iDSecure Cloud means the lock is configured, monitored and opened remotely rather than visited with a laptop.
It holds 500 users, 110 fingerprints and 500 PINs, fits different door types, and runs on four AA batteries for about a year at ten openings a day — so there is no cabling to the door. A 9 V battery on the outside powers it in an emergency.
New in 2026 — Control iD has not published an English page yet. Visit the product website (Portuguese)
This device is part of Openitem’s Control iD autonomous entry, attendance and occupancy solution — see how it is deployed, what it integrates with, and the rest of the range. For door locks from other makers, see Control iD Smart Locks and Smart Door Unlock.
Part of the access-control hardware range — readers, controllers, locks and terminals that run with Openitem.
Description
The lock relocks itself: a door sensor locks it when the door closes, and a timed relock after opening can be adjusted remotely. A forced door raises a visual and audible tamper alarm, and ten failed attempts in a row lock the keypad out.
Access is scheduled by group, with time windows per weekday set to the minute, and each user can be given an expiry date. Visitors get a single-use, time-based code (TOTP) instead of a permanent PIN, and can be registered at the lock or remotely. A duress PIN or fingerprint opens the door as normal while silently alerting the platform.
From the cloud, the lock can be opened and closed, users, PINs and fingerprints added and removed in bulk, fingerprints enrolled remotely with live feedback, timers, volume and schedules changed, and the lock reset to factory settings. Every attempt is logged with the credential type, result and time, and firmware updates arrive over the air with a signature check. A do-not-disturb mode, set by a two-second button press or remotely, blocks PIN and fingerprint entry until the door is opened from inside.
Technical specifications
- Capacity: 500 users, 110 fingerprints, 500 PINs
- Credentials: 500 DPI capacitive fingerprint reader; 4–12 digit PIN; time-based one-time password (TOTP); remote opening from the app or iDSecure Cloud within a valid time window
- Keypad and status: 12 backlit capacitive keys; RGB LED for Wi-Fi and lock state; low-battery indicator
- Connectivity: Wi-Fi 802.11 b/g/n/ax; Bluetooth Low Energy for first-time setup from the app; iDSecure Cloud; NTP time sync; signed over-the-air firmware updates
- Power: 4 × AA alkaline (6 V DC), about one year at 10 openings a day; 9 V battery for emergency power
- Dimensions: outside unit 64 × 169 × 15 mm (165 g); inside unit 73 × 175 × 43 mm (450 g); strike 30 × 140 × 31 mm (75 g)
- Environment: 0 °C to 40 °C; install out of rain and direct sun
